About WeatherClad®
WeatherClad® wood-effect cladding panel is an autoclaved cellulose fibre reinforced cement siding board manufactured from Portland cement, cellulose fibres, finely ground sand and water. WeatherClad® is supplied in a wide range of colours and wood stains.
Features & Benefits
- Reaction to fire Classification to BS EN 13501-1: A2-s1,d0 – Test report available to request
- Wood-effect cladding

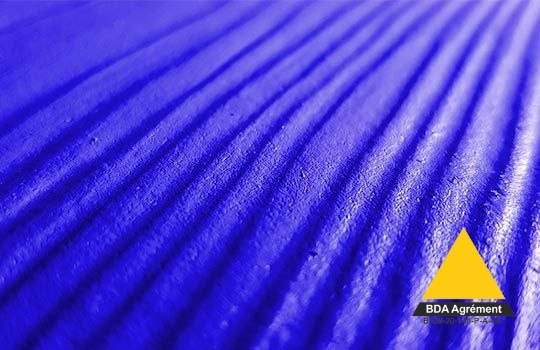

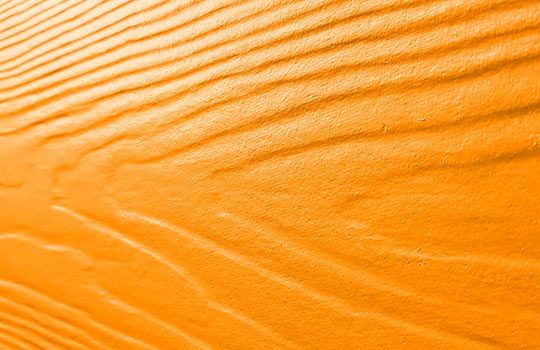

- Natural timber look with random embossed grain
- Weather resistant (see BDA certificate)
- BDA Agrément (BAW-20-140-P-A-UK) – Available to request or from KIWA
- Split pallets available, please ask for details
- Wide range of colours and stains
- Easy to work and fix
- Comprehensive range of colour matched profiles and trims available, please ask for details
Applications
WeatherClad® is a wood-effect cladding system to be applied in the principles of a ventilated rainscreen. WeatherClad® is designed for external applications where superb durability and performance in a range of climates is required. Supporting framing components must have adequate durability for the intended use and comply with applicable and appropriate national building codes.
Do not use WeatherClad® wood-effect cladding in areas where it may remain in contact with standing water.
Technical
Product size: 3660 x 230 x 7.5mm.
WeatherClad® wood-effect cladding is available in a wide range of standard colours and woodstains plus RAL colours upon request. Minimum order quantities may apply to RAL colour orders.
Please see the colour chart in our brochure.
Technical Data
| Type of Test | Value | Tolerance |
|---|---|---|
| Bending Strength | 7N/mm² | |
| Min Apparent Density | 1340kg/m³ | |
| Dimension Measurement (mm) | ||
| a) Width Tolerance, mm | +0, -2 | |
| b) Length Tolerance, mm | +0, -5 | |
| c) Thickness range, mm | 7.3 - 8.3 | |
| d) Straightness (maximum edge deviation) | 4 | |
| e) Squareness (maximum difference in diagonals) | 3 | +0.04 |
Documents
The following documents are available to request for Weatherclad®
– BDA Agrément® Certificate
– Product Safety & Handling Information
– Installation & Maintenance Information – –
Being “to request” ensures we provide the correct document version relative to the project timeline – completed, in process or prospective.

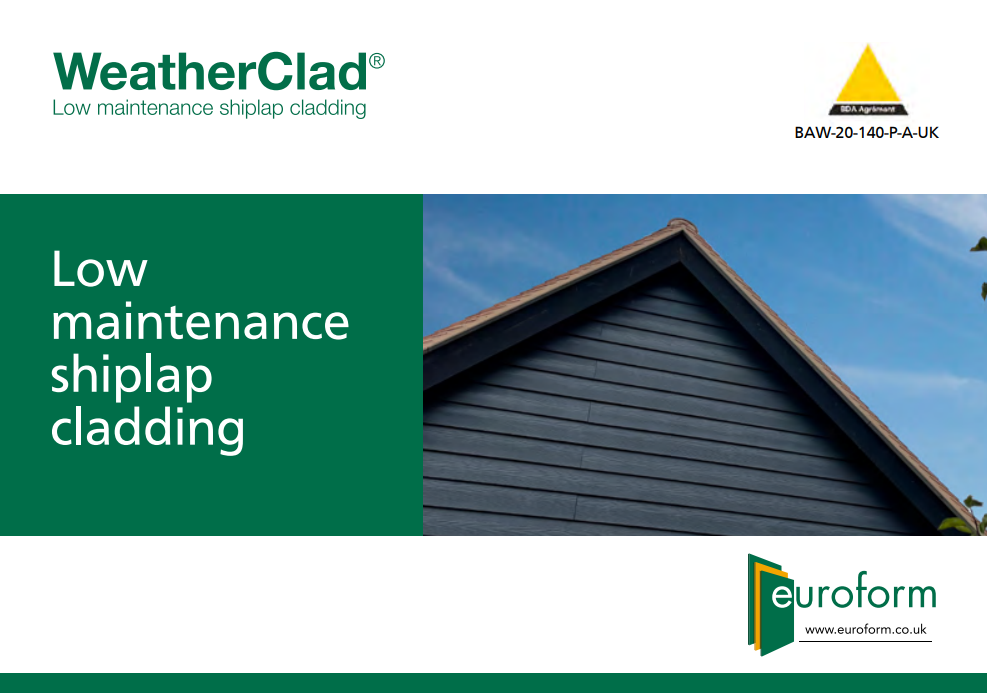

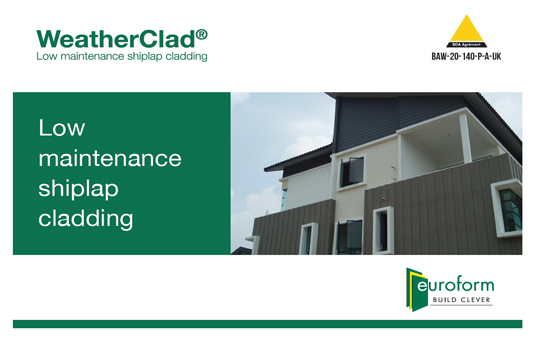

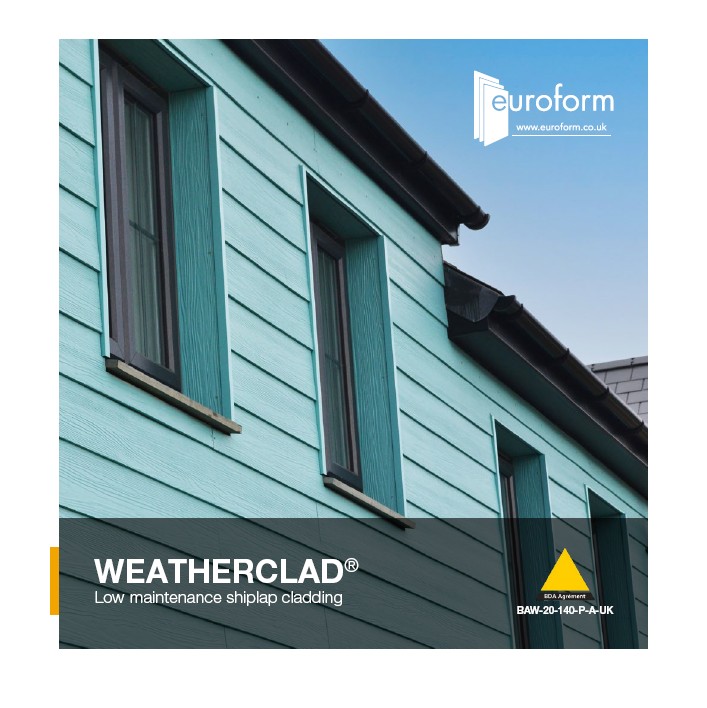

Download our WeatherClad® Wood-Effect Cladding Panel Brochure
To ensure you have the latest WeatherClad Brochure call 01925 860 999.
Enquire About WeatherClad®
01925 860 999
Have questions about WeatherClad®?
Let’s arrange a consultation.
More Case Studies from Euroform
Euroform’s products, expertise and outstanding technical support in action.

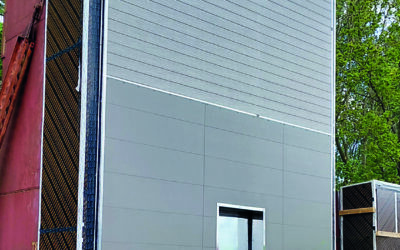

EUROFORM GAINS POSITIVE CWCT RESULTS FOR NICHIHA RAINSCREEN SYSTEM
