About Versaroc® MPA1
Versaroc® MPA1 is fibre cement board comprising ordinary Portland cement with inorganic reinforcing fibres. Ideal for exterior sheathing of SFS frames due to high durability and non-combustibility.
Conformity assessed to BS EN 12467:2012+A2:2018. It is classified as Reaction to fire: A1 non-combustible according to BS EN 13501-1:2018. Light grey in colour, Versaroc® MPA1 is relatively smooth to one side with textured reverse. Versaroc® MPA1 is highly moisture tolerant and has achieved category A performance to EN 12467:2012+A2:2018
Features & Benefits
- Conformity assessed to BS EN 12467:2012+A2:2018
- Reaction to fire: A1 non-combustible according to BS EN 13501-1:2018

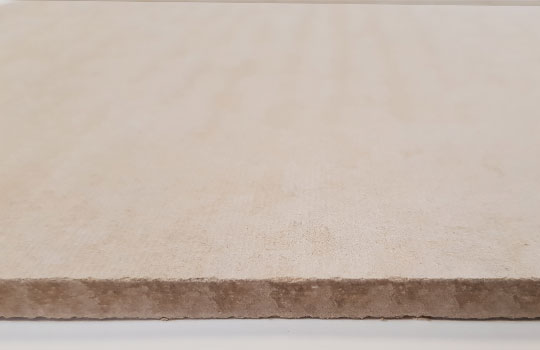

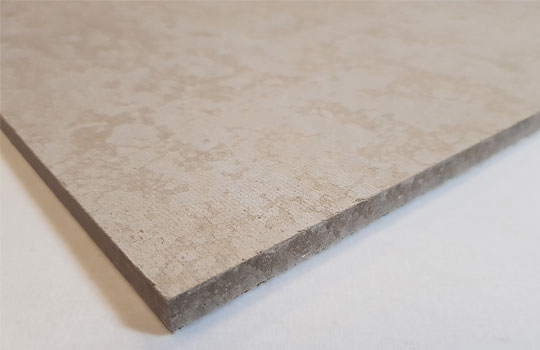

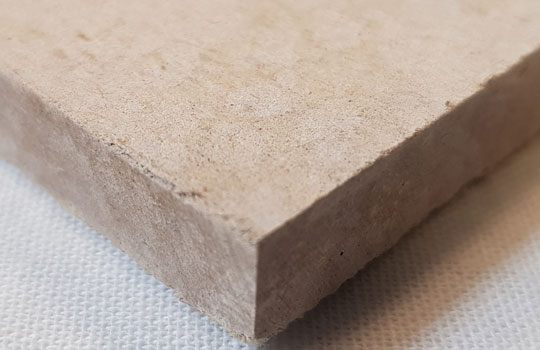

- Light grey in colour, relatively smooth to one side with textured reverse
- Highly moisture tolerant and has achieved category A performance to EN 12467:2012 + A2:2018
- Versaroc® MPA1 has exceptional mechanical performance
- Helps improve the airtightness of building envelopes when sealed at joints
- Relative high density for excellent acoustic performance
- Available in either 9mm, 12mm or 15mm in standard sheet size 2400 x 1200mm
- Bespoke sizes available to suit your system requirements
- BDA Agrément (BAW-20-154-P-A-UK)
Applications
- Approved ETICS systems
- Terracotta cladding systems
- High performance cladding systems
- Traditional brick coursework
Technical
| Parameter | Value | Tolerance/Test Standard |
|---|---|---|
| Sheet Length | 2400 mm | +/-3 mm |
| Sheet Width | 1200 mm | +/-3mm |
| Sheet Thickness | 9, 12 or 15 mm | BS EN 12467 |
| Straightness of Edges | <0.3% | BS EN 12467 |
| Squareness | 2mm/m | BS EN 12467 |
| Dry Density | 1360 kg/m³ | +/- 10% |
| Approx. weight per sheet 9mm 12mm 15mm | 35 kg 47 kg 59 kg | N/A |
| Reaction to fire | A1-Non combustible | BS EN 13501-1 |
| MOR - Modulus of Rupture / Bending strength in wet conditions | 7.55 MPa | BS EN 12467 - class 2 |
| MOE - Modulus of Elasticity | > 3 kN/ mm2 | N/A |
| Compressive strength | 54.9 N/mm² | BS EN 789 |
| Moisture movement in thickness | < 10 % | BS EN 12467 |
| Linear moisture movement | 0.0148% | BS EN 12467 |
| Water impermeability | No droplets | BS EN 12467 |
| Inter lamina bond strength (MPa) | > 0.8 | N/A |
| Ex works moisture content (%) | TBC | N/A |
| Maximum moisture content (increase in mass) | <32% (maximum increase in mass) | BS EN 12467 |
Testing
The product has been subject to testing by the manufacturer, and as part of “built” systems by customers and system component suppliers e.g., renders, framing etc.
Please contact our Technical Team on [email protected] for additional product performance information to assist with your specific project application.
Documents
– BDA Agrément® Certificate
– Declaration of Performance (DoP) CE
– Declaration of Performance (DoP) UKCA
– Product Safety & Handling Information
Being “to request” ensures we provide the correct document version relative to the project timeline – completed, in process or prospective.
