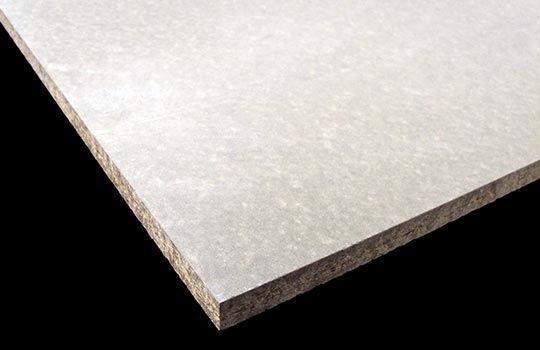

Versafloor® Cement Bonded Particle Board

About Versafloor®

Versafloor® is a cement bonded particle board intended for internal use. Versafloor® is CE marked in accordance with EN 13986.

The construction industry now requires as many components as possible to be supplied in a finished form, minimising any further work on site. This particularly applies to the Modular and Volumetric construction industry where modules are of a repetitive sizing for such constructions as: prisons, hospitals, restaurants, petrol stations, hotels.

Euroform have developed for this market Versafloor® factory finished flooring systems. Versafloor® is manufactured using Versapanel® cement bonded particle board which has high performance in the presence of moisture and high acoustic performance.

Features & Benefits

  • Acoustic performance (see DOP)
  • Rot proof (see DOP)
  • Resistant to compression (see DOP)
  • Resistant to fungus & mould growth (see DOP)
  • Machined to precise measurements
  • Cut to size service available, please ask for details

Applications

Versafloor® can be used in any number of applications, including but far from limited to:

  • Floor renovations
  • Modular flooring systems
  • Mezzanine floors

Versafloor® has been used successfully in:

  • Apartments
  • Offices
  • Hospitals
  • Restaurants
  • Petrol stations
  • Hotels
  • Prisons

Technical

Product range

Panel Type: unsanded / calibrated
Standard Sizes Thicknesses: 18, 19, 20, 22, 24, 25, 28
Sizes: 1200 x 600mm, 1200 x 1200mm
Special sizes of panel and thicknesses are available on request
Density (average)1300Kg/m3
Modulus of Elasticity4500N/mm2
1.Thickness tolerances
Calibrated:
un-sanded		18-28mm+/-0.3mm
18-19mm+/-1.0mm
22-28mm+/-1.5mm
2. Length:
3. Width:
4. Squareness:		+5mm
+5mm
-2.5mm on panel diagonal difference
Bending Strength (min) 9N/mm2
Permissible design value 2.25N/mm2
Tensile strength
(parallel to surface)		4.0N/mm2
Tensile strength
(perpendicular to surface)		0.5Nmm2
Compression strength (min)15N/mm2
Surface AlkalinitypH between 11 and 13
Moisture Content
(ex production)		9% +/- 3% by weight
Thickness Swelling
(24hrs immersion)		0.7% (average)
Dimensional
Stability		0.11% for an increase in relative humidity from 65% to 90%

0.16% for an increase in relative humidity from 65% to saturation
Thermal Conductivity0.26.W/m.k.
Coefficient
Sound InsulationSee characteristics guide
Also acoustic information
Reaction to FireEN 13501-1:
A2fl-s1
Bonding AgentVersafloor® is odourless,
Since the bonding agent is free from formaldehyde.

Type 001

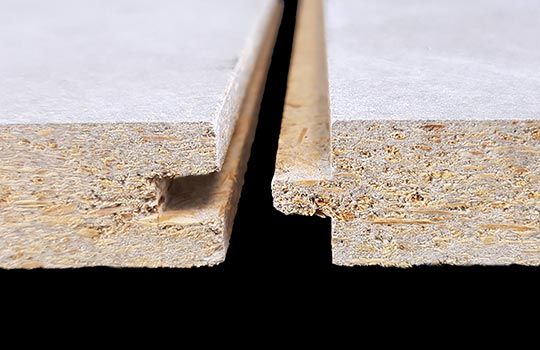

Unsanded Versafloor® can be supplied with the standard unsanded finish with square edge or tongue and groove applied to two or four edges. Care must be taken when using this specification as there will be a thickness tolerance of up to +/- 1.5mm.

Note: This range can also be supplied with a factory applied grey primer/sealer to both faces which is highly recommended for environments where the product may take on moisture during a build process or in its service life. The top surface is white and the bottom surface is grey.

Type 002
Calibrated Versafloor® has been factory calibrated and all thicknesses have a thickness tolerance of +/- 0.3mm. This range can also be supplied square edge or with tongue and groove applied to two or four edges. This product range is suitable for application of fine thickness overlays such as vinyl flooring and thin carpet tiles.
Type 003
Primed/Sealed Versafloor® that has been factory calibrated and then has a factory applied primer/sealer to reduce uptake of moisture when used in damp or wet conditions, the thickness tolerance is +/- 0.5mm. The top surface is white and the bottom surface is grey, the application of this primer/sealer can prevent up to 80% of moisture uptake.

This range can also be supplied square edge or with tongue and groove applied to two or four edges. This primer/sealer is highly recommended for environments where the product may take on moisture during a build process or in its service life. The top surface is white and the bottom surface is grey.

Testing

The product has been subject to testing by the manufacturer, and as part of “built” systems by customers and system component suppliers e.g., renders, framing etc.
Please contact our Technical Team on [email protected] for additional product performance information to assist with your specific project application.

Documents

The following documents are available to request for Versafloor®
– Declaration of Performance (DoP) CE
– Product Safety & Handling Information
Being “to request” ensures we provide the correct document version relative to the project timeline – completed, in process or prospective.

Download our Versafloor® Brochure

To ensure you have the latest version of this document call 01925 860 999.
