Accessories

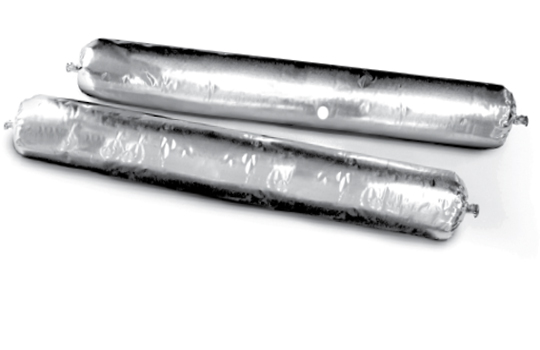

About Versaseal®

Accessories - Versaseal
Versaseal® is a one part, emulsion acrylic based, intumescent sealant that gives a firm yet flexible seal to movement joints in the Euroform sheathing board range. Versaseal® is available in Grey or White to complement the colour of the board being used.
Versaseal® is halogen free, over paintable and non-slump making it easy to apply and tool off.

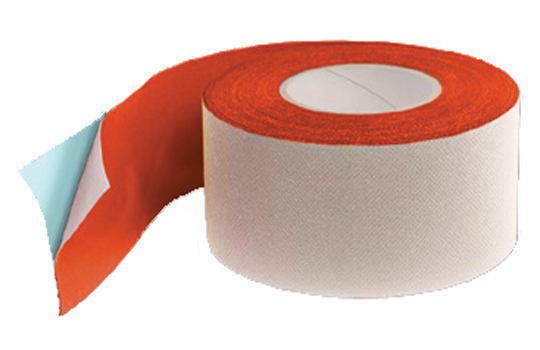

About Versatape

Accessories - Versatape

Euroform Versatape consists of a triple layer polypropylene micro-porous film laminate, with a proprietary acrylic moisture vapour permeable adhesive and silicone-coated PET release liner. With an Sd rating of 0.039, Euroform Versatape provides a highly vapour permeable, but fully airtight performance for multiple applications and conditions. These crucial characteristics allow moisture vapour to escape the structure easily whilst maintaining the integrity of the building envelope.

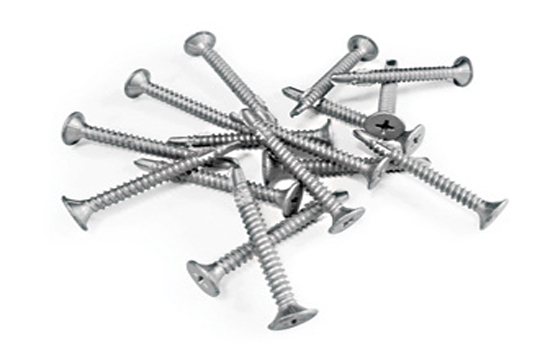

About EMF Fixings Range

Accessories - EMF fixing

High quality grade case hardened carbon steel to DIN standard 10666.
Our EMF range of fixings can be used to fix our range of sheathing boards* to light gauge steel frame with a thickness of 0.9 – 3.0mm.

Features & Benefits

Versaseal®

Versaseal® is available in Grey or White to complement the colour of the board being used.

Versatape

• Airtight yet vapour permeable
• Resilient composition resists puncture & tearing
• Flexible providing easy application
• Wide operating temperature range (-40°C* to +100°C)
• Can be left exposed for up to 120 days in UK construction
• No primer required
• No VOC’s

EMF Fixings Range

High quality grade case hardened carbon steel to DIN standard 10666.

* NOTE: where ambient site temperature is likely to be below 10oC we recommend tape should be stored prior to use @ 20oC for 12 hours to aid bonding.

Applications

Versaseal®

For sealing of joints, voids and irregular holes in Euroform sheathing boards. Also for stopping unnecessary air leakage at the joints between sheathing boards and around openings.



Versatape

Euroform Versatape is a useful way of stopping unnecessary air leakage at the joints between sheathing boards, around openings and overlaps. Euroform Versatape is airtight, tear resistant with high vapour permeability for internal and external applications. It fully bonds to all standard substrates, suppressing air leakage around joints, openings and penetrations. Versatapes high vapour permeability allows damp sheathing to dry quickly and moisture vapour to escape. This helps ensure good indoor air quality and reduces the likelihood of mould, mildew, condensation, timber distortion and metal corrosion.



EMF Fixings Range

Our EMF range of fixings can be used to fix our range of sheathing boards to light gauge steel frame with a thickness of 0.9 – 3.0mm.

Specification

Versaseal®

Packaging600ml foil pack
Shelf Life24 months unopened
StoreCool dry conditions between + 5°C
and 30°C. Protect from frost
Curing Rate1mm / 24hrs at 50% RH 23°C.
Colder temperatures will extend
curing time.
Skin Time10 minutes
Tack Free Time15 minutes
Maximum Joint Width50mm

Versatape

PropertyValueUnitTest Method
Reaction to FireB-s1,d0- EN 13501
Air tightness0.01m³/m².h.50pa-
Water Vapour Resistance (Sd)0.039MEN 12572
Water PenetrationClass W1- EN 1928
Tensile Strength MD/CD417 / 252NEN 12311-1
Tear Resistance MD/CD412 / 286NEN 12301-1
Low temperature flexibilityNo Cracks@ -40˚CEN 1109
Full bonding potential4 - 6Hours-

EMF Fixings Range

Ultimate Fastener Tensile
Fastener DiakN
4.8 x L9.4
Ultimate Fastener Shear
Fastener DiakN
4.8 x L6.5
Steel Thickness (mm)
Fastener Dia1 x
0.7mm
2 x
0.7mm
1.0mm1.2mm1.6mm3.0mm
4.8 x L0.741.41.32.32.996.59

Testing

For full testing information, call 01925 860 999.

Documents

Accessories - Versaseal

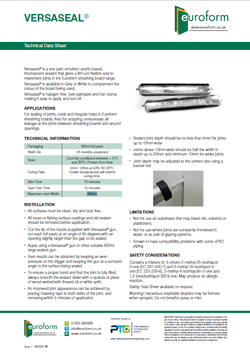

Download Versaseal® Technical Data Sheet

Accessories - Versatape

Download Versatape Technical Data Sheet

Accessories - EMF fixing

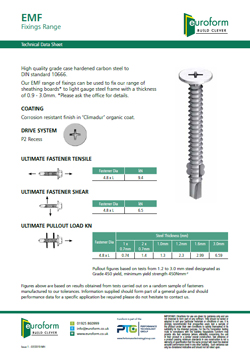

Download EMF Fixings Range Technical Data Sheet

To ensure you have the latest version of this document call 01925 860 999.
